Fig. 3 | Journal of Applied Volcanology

Fig. 3

From: Volcanic unrest scenarios and impact assessment at Campi Flegrei caldera, Southern Italy

Fig. 3

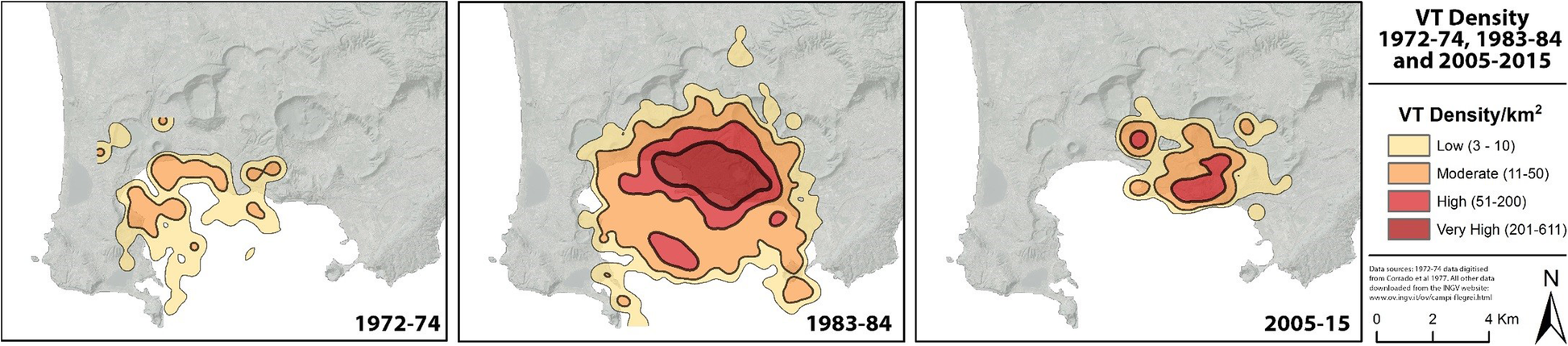

The density of VT events from Kernel Density analysis. The 1980s unrest episode was centred on Pozzuoli, but the distribution of seismicity from 1970s and 2005 shows a different pattern. During the 1970s unrest, seismicity was focused in the western regions, more towards the town of Baia. More recently the seismicity pattern has shifted marginally towards Solfatara and Agnano to the East of Pozzuoli (INGV 2016)
